Candle Dippers™ Magnetic Tripod Mount Kit with Steel Base Plate and 1/4-20 Female Threaded Post Neodymium Nickel-Plated Cup Magnet
In stock, ready to ship
Delivery and Returns
We offer fast and reliable shipping on all orders. Enjoy fast delivery on orders with delivery times ranging from 3-7 business days.
Not completely satisfied with your purchase? No worries! We accept returns. Items must be in their original condition and packaging. For more details, check out our full delivery and returns policy.
Lifetime Warranty
We build our products to last, and we stand behind them - for life.
If your product ever develops a defect in materials or workmanship under normal use, simply contact us. We’ll take care of it by repairing, replacing, or refunding the item.
(This warranty doesn’t cover damage from misuse, modifications, or normal wear over time.)
Features
- Precision magnetic interface between candle frame and tripod
- Hands-free frame positioning during stringing
- Increased control and repeatability in frame preparation
- Rapid mounting and removal without clamps or permanent fixtures
- Stable vertical alignment on tripod systems
- Damped contact surface to reduce vibration and surface stress
- Modular integration with frame accessories and tripod hardware
The Details
This kit transforms a standard tripod into a precision mounting platform for candle frames.

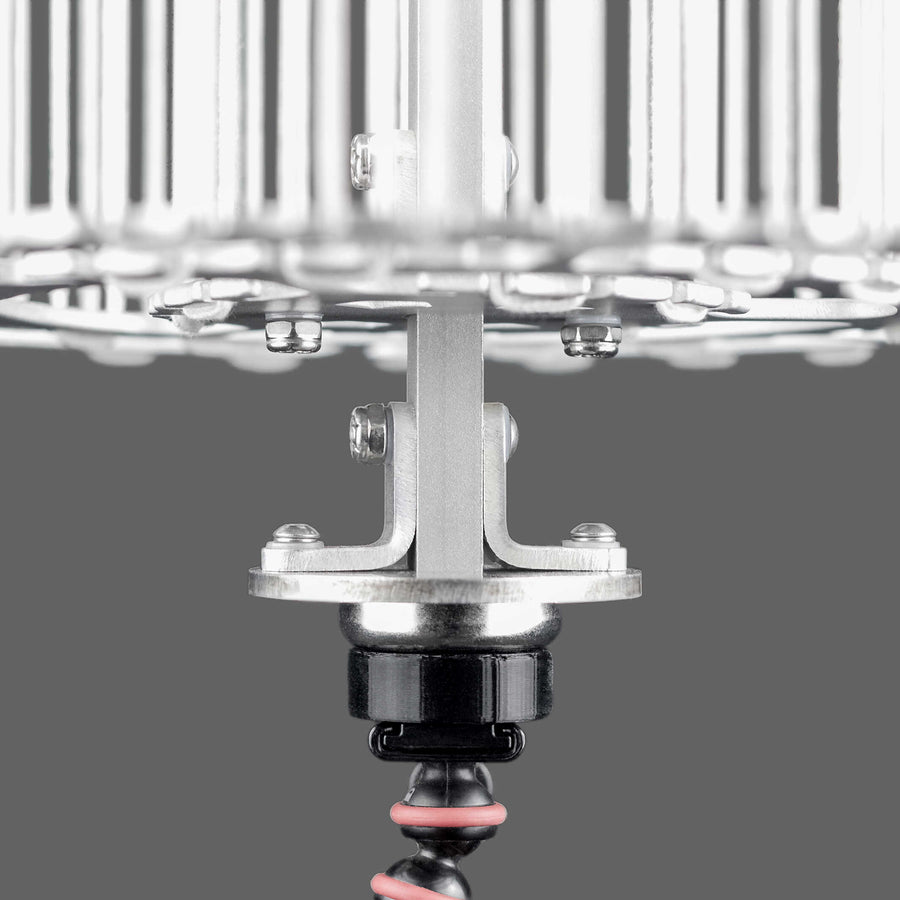

A steel plate is fixed to the underside of the frame. The neodymium cup magnet mounts to the tripod via the standard threaded post, with a TPU spacer providing controlled separation and damping. Once assembled, the frame can be placed onto the tripod with a precise magnetic interface and removed just as cleanly.
The result is a rigid, upright frame position that eliminates the need to balance or hand-support the frame during stringing. Instead of working one-handed or improvising supports, both hands are free to tension and align wicking material. This significantly improves control, accuracy, and throughput during frame preparation.
Within frame-based workflows, the system functions as a modular fixture rather than an accessory. Frames can be mounted, removed, and repositioned with speed and repeatability, turning a previously awkward step into a controlled, engineered operation.
Technical
Frame Interface Plate
- Material: Steel
- Surface Finish: Tumbled
- Diameter: 2.18″
- Center Hole: Shaft-fit precision square bore
- Manufacturing Process: Laser cut and machined
- Ships coated in Fluid Film lanolin-based rust inhibitor
Magnet Assembly
- Magnet Grade: Grade 42 neodymium
- Cup Material: Cast steel
- Surface Finish: Nickel-plated
- Diameter: 1.26″
- Height: 0.69″
- Rated Pull Force: 75 lb
- Thread Specification: 1/4-20 UNC female
- Manufacturing Process: Magnet sintering and cast cup housing
Damping Spacer
- Material: TPU 95 thermoplastic elastomer
- Manufacturing Process: 3D-printed
- Diameter: 1.16″
- Height: 0.38″
Structural Brackets
- Material: Aluminum
- Surface Finish: Tumbled
- Manufacturing Process: Laser cut and bent
- Quantity: 2
Fasteners
- Material: Stainless steel and nylon
Included Fasteners
- Button head shaft screw (1 pc)
- Button head plate screw (2 pcs)
- Nylon-insert locknut (1 pc)
- Nylon washers (4 pcs)
- Stainless split lock washers (2 pcs)

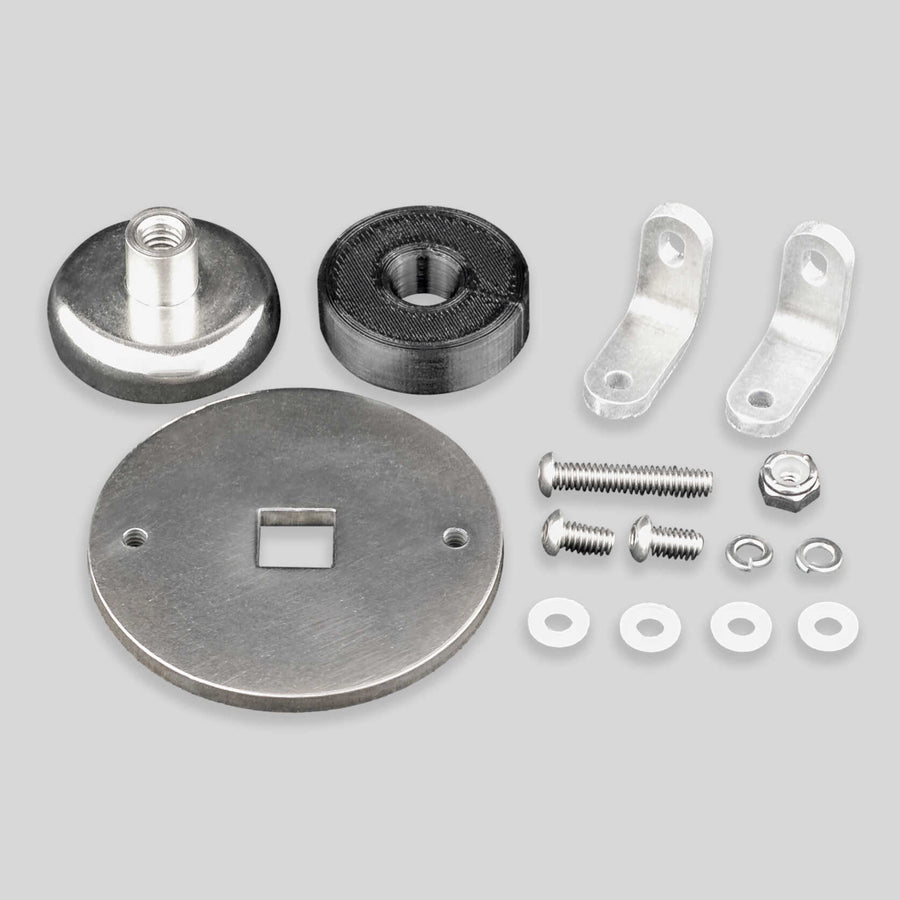

Kit Contents
- Frame interface plate
- Neodymium cup magnet assembly
- TPU damping spacer
- Aluminum mounting brackets (2 pcs)
- Complete fastener set
Gear Tip > Optimize frame cooling
If you need a simple way to hang frames while cooling applied wax layers, and between production cycles, a set of heavy-duty storage straps with metal grommets provides ready-made hanging points for frame hooks without drilling or permanent hardware. For higher throughput, a lightweight folding clothes rack offers enough strength to support multiple fully loaded frames while remaining easy to move and store. Together, these inexpensive, off-the-shelf items create a flexible hanging setup that scales from small batches to larger runs without the complexity of a fixed installation.
As an Amazon Associate, Candle Dippers earns commission from qualifying purchases, at no additional cost to the purchaser.
Frequently Asked Questions
-
Why do I need this?

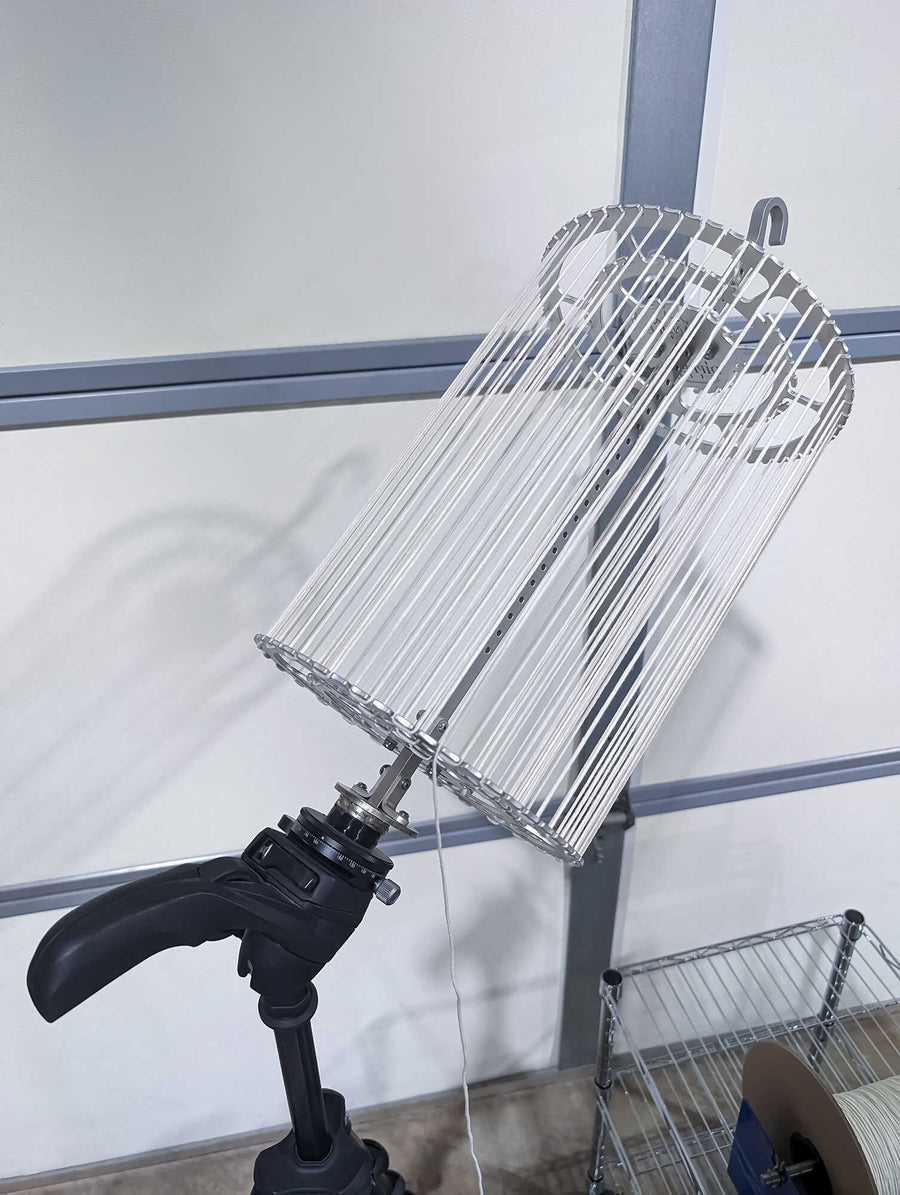

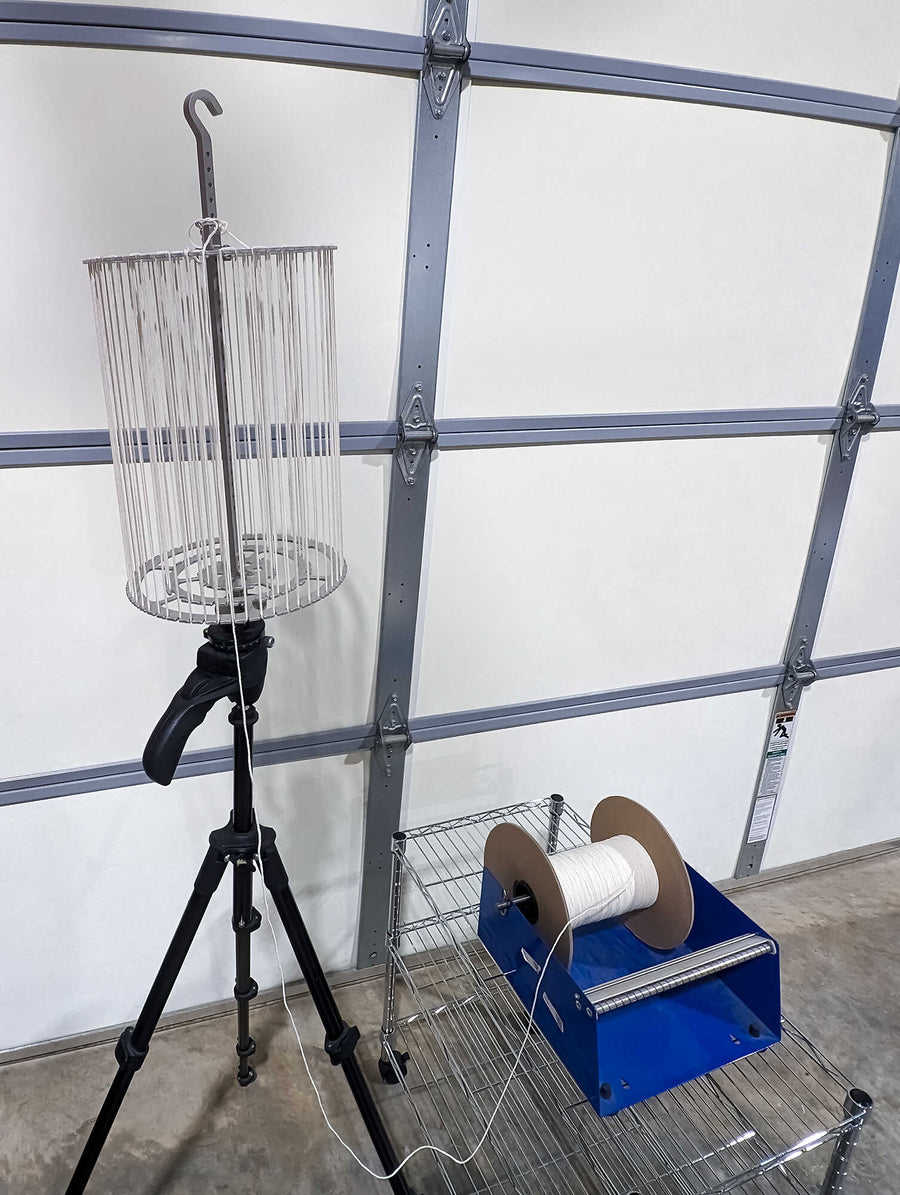

Our tripod mount is a major upgrade for speeding up your frame stringing workflow. We developed it after many frustrating sessions trying to string frames by hanging them, holding them in one hand or resting them on a tabletop. Proper frame stringing requires two hands to achieve the correct wicking tension. Proper tension ensures the candles form straight when dipped. If the wick is slack the candles can develop a bow. If the tension is too great the wick will not become properly impregnated with wax during dipping, which can reduce burn quality for your customers. When a frame is hung it swings away as soon as you pull tension on the wicking. When you hold the frame with one hand, either in the air or on a tabletop, you can maintain tension but threading the wicking through the notches becomes difficult at the same time. One hand must hold tension, similar to holding a knot while tying a bow, while the other guides the wicking through the notches. Mounting the frame on an inexpensive tripod using our kit keeps it stable and frees both hands, dramatically speeding up the process. In most cases the time saved in a single session more than pays for the cost of the kit.
-
What is the difference between the two kits?
The complete kit includes a magnet and a spacer, which you install on your tripod. The bottom plate kit is only the hardware needed to mount on your frame. You only need a complete kit for however many stringing stations you will have setup on tripods. For every other frame you only need the bottom mount kit. So, if you buy three frames, and plan to set up one tripod, you need one complete mount kit, and two bottom plate-only mount kits.
-
What kind of tripod do I need?
Practically any cheap tripod will do. On our Gear Tips page, we link to an Amazon Basics tripod, and we also highly recommend the panning base also linked to on that page. The panning base allows you to rotate the frame while stringing, rather than having to dance around the tripod to follow the course of your stringing (but go ahead and dance you heart out, if you want to!).
-
My question isn't listed. How can I ask you a question?
You can contact us on our Contact Us page, or you can schedule a free consulation with our founder, or, what we would really like for you to do, is to ask your question using the Ask A Question button below, in the Customer Reviews section, so we can build a repository of answered questions the whole Candle Dippers community can access 🙏
